Standby

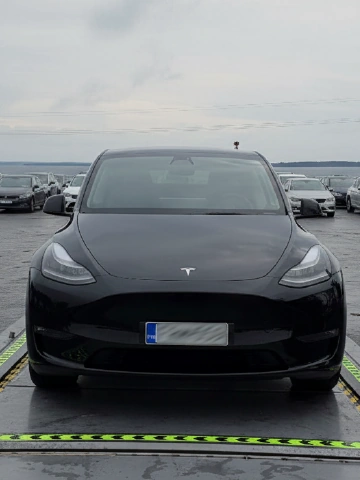

A drive-over steel basin - in standby the module stands about 20 mm high.
Fixed EV fire containment / Marine
Contain the battery.
Protect the vessel.

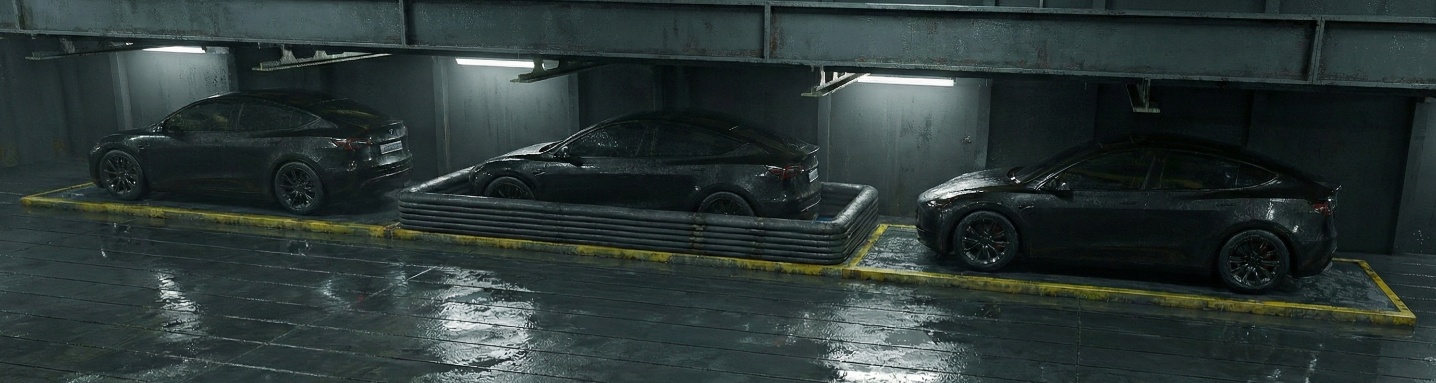

PyroPool is a containment concept built into the vessel's car deck, designed to rise around a battery-electric or plug-in hybrid vehicle (BEV/PHEV), cool the battery from below and keep contaminated suppression water under control.
Concept-stage system for technical evaluation and vessel-specific engineering.
System profile
Mechanical / fixed
20mmstandby profile
600mmdeployed height
≤180starget rise time
Design targets from the current technical concept. Final performance is subject to project-specific verification and approval.
01 / The risk
The problem has changed
EV fires no longer follow the old playbook.
When an EV battery pack ignites, the fire burns extremely hot, releases hazardous gases and carries a high risk of re-ignition. On a densely loaded vehicle deck, both time and distance are in short supply.

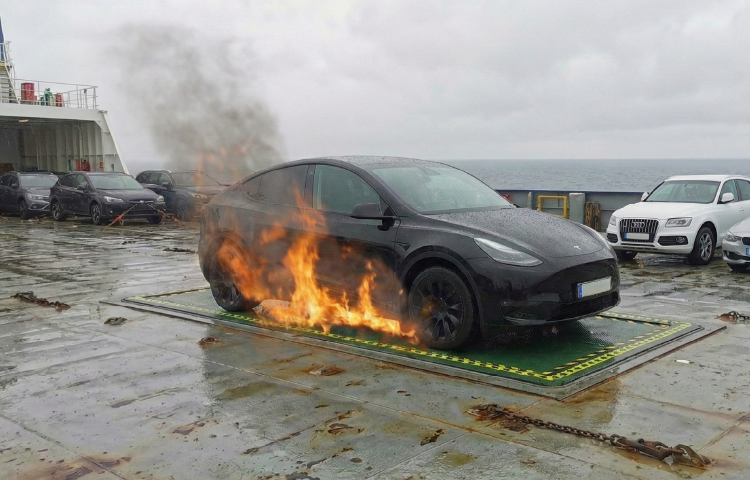

PyroPool forms a fixed basin around the vehicle and confines the fire risk.
02 / The system
Pressure becomes structure
A pool that is almost invisible - until it matters.
Actuate
Trained crew in the required PPE/SCBA open the secured water supply from a safe distance, following the vessel's procedures. Note: the charging cable must always be disconnected from the vehicle before PyroPool is activated.
Contain + cool
Pressurised water expands 3 - 6 stainless-steel layers (configuration adaptable) into a rigid basin around the vehicle.
Manage aftermath
The vehicle and its battery stay in the basin, keeping the fire contained and under control until the vessel reaches port. Only there are the vehicle and the contaminated suppression water moved to HAZMAT handling.
3 - 6independently supplied
bellows layers
bellows layers
8 - 12barnominal working pressure
minimum pressure 5bar
minimum pressure 5bar
≈ 600lwater in the basin walls
at six layers
at six layers
AISI 316Lmarine-grade acid-proof
bellows structure
bellows structure
03 / Engineering
Simple at the point of use
Deep engineering.
Clear operating logic.
The current concept is fully mechanical and does not depend on electrical actuation in an emergency. A sensor-based, electrically actuated system is also in design. The architecture is built for redundancy, marine corrosion resistance and vessel-specific integration.

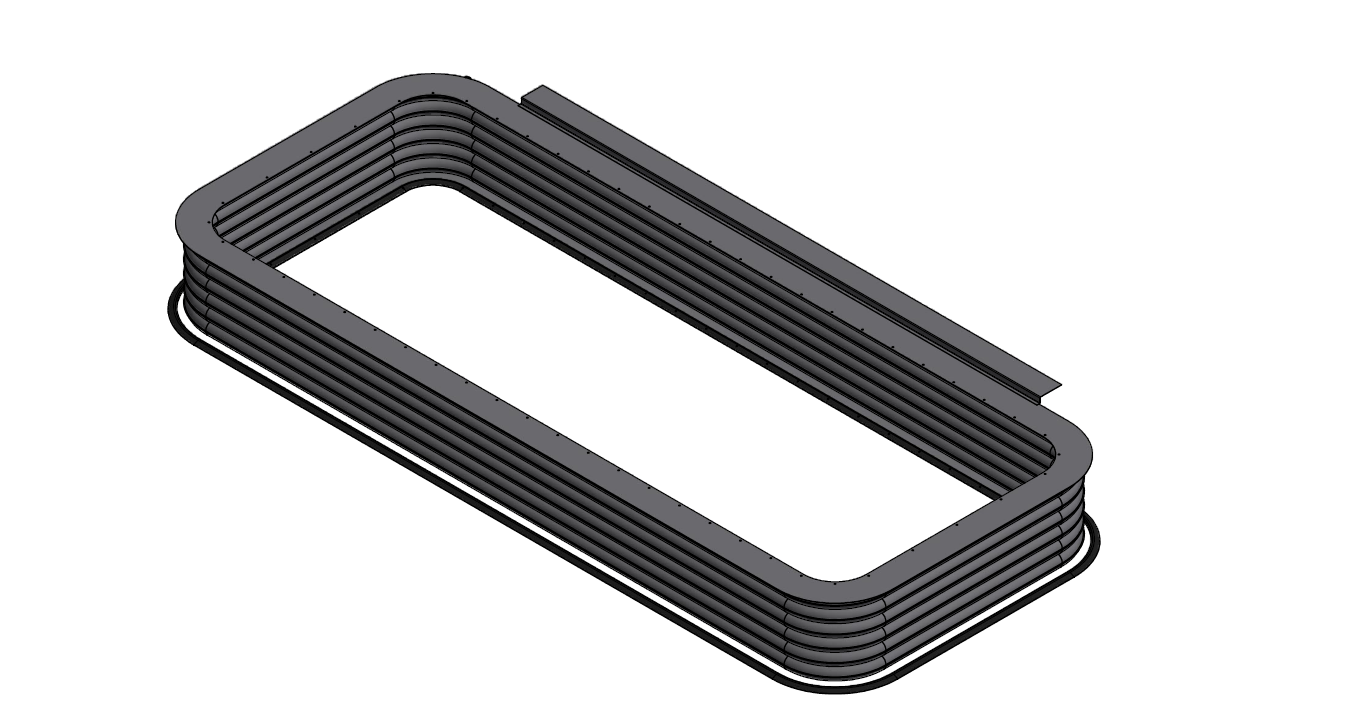

PP / 3D-006Deployed geometry
Configurable layer architectureParallel feeds and excess-flow isolation support partial function if one layer is damaged.
PP / SPECIndicative module
- External footprint
- 5,426 × 2,326 mm
- Internal basin
- 4,944 × 1,844 mm
- Maximum free surface
- 9.1 m²
- Water volume in basin walls
- ≈600 lat six layers
- Minimum flow target
- 210 l/min
- Main connection
- DN50 / 2″ flange
- Dry module weight
- ≈350 kgwithout base plate
- Deployment lifecycle
- Single-use modulereplace after activation
Indicative concept configuration. Vehicle compatibility and final dimensions require vessel- and location-specific engineering.
PP / PROOFValidation track
Critical seam manufacturing method tested with Turku UAS.
The manufacturing method for the laser-welded bellows seams has undergone tensile-strength testing at the materials laboratory of Turku University of Applied Sciences.
PoCManufacturing method
validation
validation
Engineering status: PyroPool is a concept / prototype-stage system. Full-scale fire testing, classification review, flag acceptance and project-specific stability and safety assessment remain part of the approval path. No MED, SOLAS, CE or class type-approval claim is made.
Patent status: The core invention is protected by granted European patent EP4403234. Patent applications are also pending in Norway, the United Kingdom, the United States and Australia.
Trademark: PYRO POOL is a registered European Union trade mark of HypInno Oy (EUTM No 018855863).
04 / Ship operators
Practical implementation on board
Designed for everyday life on the car deck.
PyroPool is designed around existing marine operations: drive-over traffic, ship fire mains, safe-distance actuation, contaminated-water management and written ISM procedures.
Discuss your needsSimple installation
Fixed to the deck with a vessel-specific piping and fastening design - dry-docking is not necessarily required.
Integrated into the ship's fire main
Mechanical actuation from an existing or equivalent water source.
Controlled containment of fire and water
The basin limits the free spread of both the fire and the suppression water.
Structured approval pathway
Structured path for shipyard, class, flag and fire-safety engineering review.
05 / Investors
An answer to managing EV fire risk
Electrification is scaling.
Fire risk has to scale with it.
PyroPool turns a growing global safety problem into an engineered hardware platform - starting with vehicle decks and expanding to environments where dense EV parking drives up the fire risk.
Request investor briefingRegulatory pull
Operators, insurers and authorities need credible answers for new-energy vehicle risk.
Unique, durable hardware
Materials, forming, weld quality, redundancy and vessel integration create a real engineering moat.
Scalable hardware
A vessel can carry as many basins as it needs - one per vehicle. One vessel holds many parking positions and one operator runs many vessels; the opportunity is not limited to a single ship, operator or country.
A clear path to commercial potential
Unique hardware, full-scale testing, a pilot installation and approval milestones together open the way to realising that potential.
06 / Roadmap
Evidence before claims
A disciplined path to deployment.
- 01Current
Engineering prototype
Mechanical architecture, materials and critical weld manufacturing method.
- 02Next
Full-scale fire test
Tested validation of rise, containment, cooling and operational response.
- 03Pilot
Vessel integration
Ship-specific design, stability review, SAT procedures and class engagement.
- 04Scale
Commercial fleet rollout
Repeatable manufacturing, installation packages and lifecycle support.
07 / Team
Built in Finland
Operators. Engineers.
Commercial builders.
HypInno brings together practical maritime thinking, mechanical engineering and company-building around one urgent mission.
Leo Suni
Co-founder / CEO
Markus Pyökäri
Co-founder / Technical adviser
Tero Setälä
Co-founder / Engineer
Aki Ahonen
Co-founder / Finance
Development collaborators
08 / Contact
Move the conversation forward
Tell us about your needs.
Or join us in developing the solution.
We are opening technical discussions with ship operators, shipyards, class stakeholders and investors who understand the scale of this problem.
